340 Gallon HDXLPE Peabody Engineering Gemini Square Dual Containment Ribbed Tank 1.5 SG (MPN: 01-35518)

Description

The Peabody 340/457 Gallon XLPE Ribbed Double Wall Chemical Containment Tank (Part #35518) is an industrial-grade chemical storage tank designed for safe and compliant containment of corrosive liquids. Constructed from crosslinked polyethylene (XLPE), this heavy-duty tank provides exceptional chemical resistance and durability. The double-wall design offers 110-120% secondary containment, ensuring compliance with EPA 49 CFR regulations for industrial chemical storage.

With a square footprint and ribbed structural design, this tank maximizes storage efficiency, offering 22% more storage capacity per footprint than cylindrical models. UV inhibitors provide long-term resistance to sunlight exposure, making this tank ideal for both indoor and outdoor environments.

Key Features

• 340/457 Gallon Capacity (Inner/Outer Tank) – Perfect for chemical, fuel, and industrial fluid storage
• 110-120% Secondary Containment – Fully compliant with EPA 49 CFR regulations
• ANSI/CAN NSF-61 Certified – Approved for potable water and chemical storage
• Crosslinked Polyethylene (XLPE) Construction – Provides superior chemical resistance and durability
• UV-Inhibited Resin – Protects against long-term direct sunlight exposure
• 1.5 Specific Gravity Rating (12.5 lb/gal) – Built for high-density chemical storage
• Seamless, Rotationally Molded Construction – Eliminates leaks and improves long-term performance
• Compact Square Footprint – Provides 22% more storage capacity per footprint than cylindrical tanks
• Ribbed Design – Increases structural integrity and impact resistance
• Ships Fully Assembled – Saves time and labor costs on installation
• Double-Wall Construction – Prevents contamination from precipitation and external debris

Specifications

• Part Number: 35518
• Manufacturer: Peabody
• Technical Drawing: Peabody 35518 Drawing
• Capacity: 340/457 gallons (inner/outer tank)
• Material: Crosslinked Linear Polyethylene (XLPE) with UV inhibitors
• Containment: 110-120% secondary containment
• Certification: ANSI/CAN NSF-61 Certified (Food Grade, Potable Water Approved)
• Specific Gravity Rating: 1.5 (12.5 lb/gal)
• Lid: 16-inch threaded vented manway
• Connections:
  • Manway / Lid: 16" Threaded Vented Manway
• Design: Square footprint with ribbed construction for optimized storage capacity
• Color: Natural White
• Translucent: Yes

Physical Features

• Product Type: XLPE Ribbed Double Wall Tank
• Tank Shape: Square
• Tank Usability: Stationary
• Environment: Above Ground
• Gallon Indicators: No
• Pressurized Use: No
• Forklift Channels: None

Shipping and Warranty

• Ships Fully Assembled – Saves time and labor costs on installation
• Nationwide Delivery Available – Securely packaged to prevent damage in transit
• Ships From: South Carolina (SC)
• Shipping Locations: Zip Code 29657
• Warranty: Backed by Peabody’s manufacturer warranty for long-term reliability

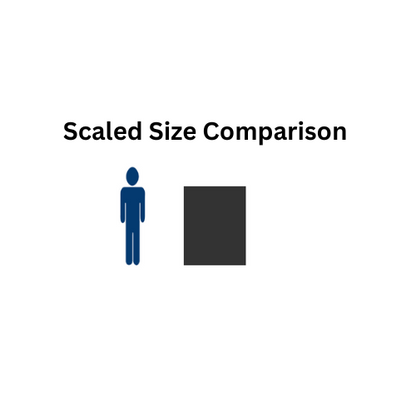

• Dimensions: 46" Length x 46" Width x 57-3/8" Height
• Liquid Access: 1 Manway/Lid
• Weight / Ship Class: 207 lbs. / Ship Class 250
• Liftgate Option: No

Price Match Guarantee

At Tank Supply Depot, we are committed to offering the best prices on all Peabody double wall tanks. If you find a lower advertised price from a competitor, let us know—we will match it.

Order your Peabody 340/457 Gallon XLPE Ribbed Double Wall Chemical Containment Tank today for secure, compliant, and efficient chemical storage
